Extra class question #5

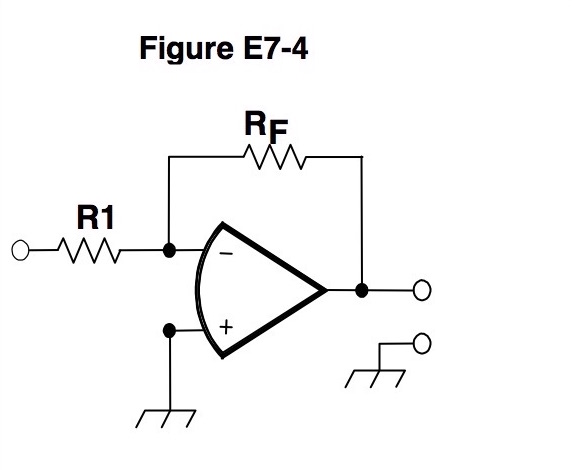

What will be the output voltage of the circuit shown in Figure E7-4 if R1 is 1000 ohms, RF is 10,000 ohms, and 0.23 volts DC is applied to the input?

e2016_E7-4

A  2.3 volts
B  0.23 volts
C  -2.3 volts
D  -0.23 volts
