KG1Q’s windshield washer sensor

Had to figure out how to change a windshield washer sensor out

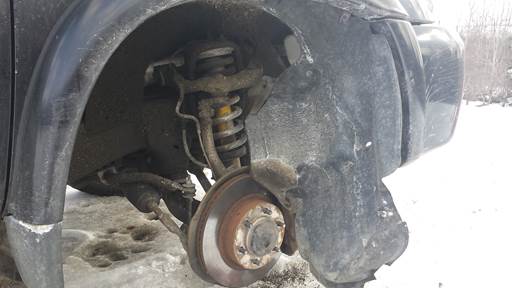

Step1: Get the tire off, and pull back plastic cover on the right front tire well

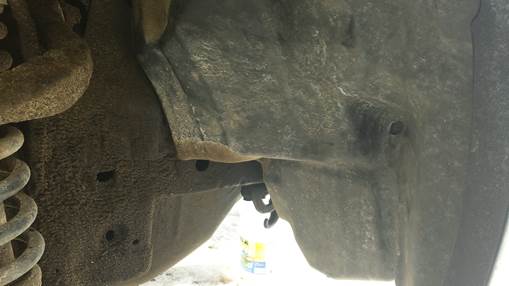

Step 2: Remove screws and plastic fasteners holding up this stupid plastic cover

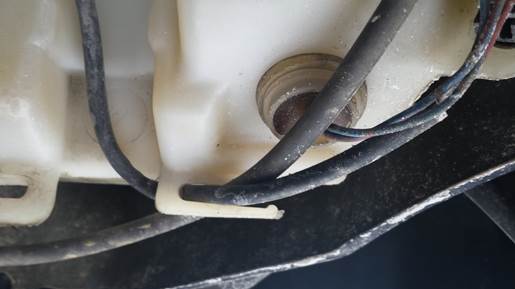

Step 3: Figure out how to pry that round sensor out of the tank. Had to go to youtube to figure this out

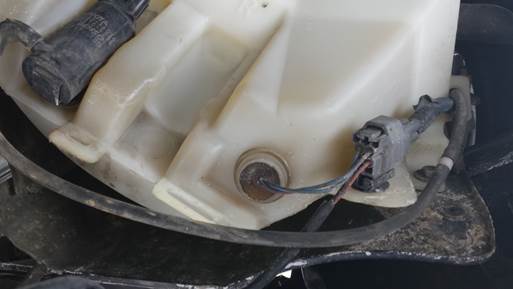

Step 4: You can see the windshield washer pump in the top left

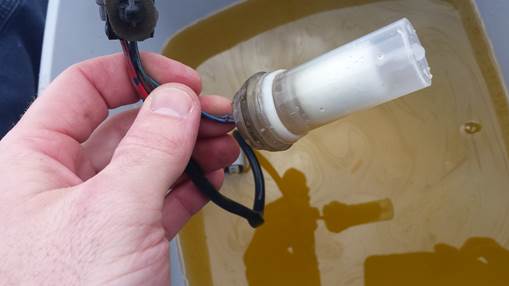

Step 5: Heres the shitty sensor. The float inside the plastic tube was fetching up, causing my empty light to come on the dash

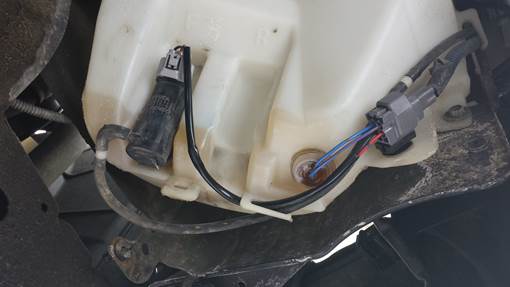

Step 6: New sensor and wiring harness installed. Put back covers and put tire back on. Torque tire to 80-90 ft/lbs

Fin
