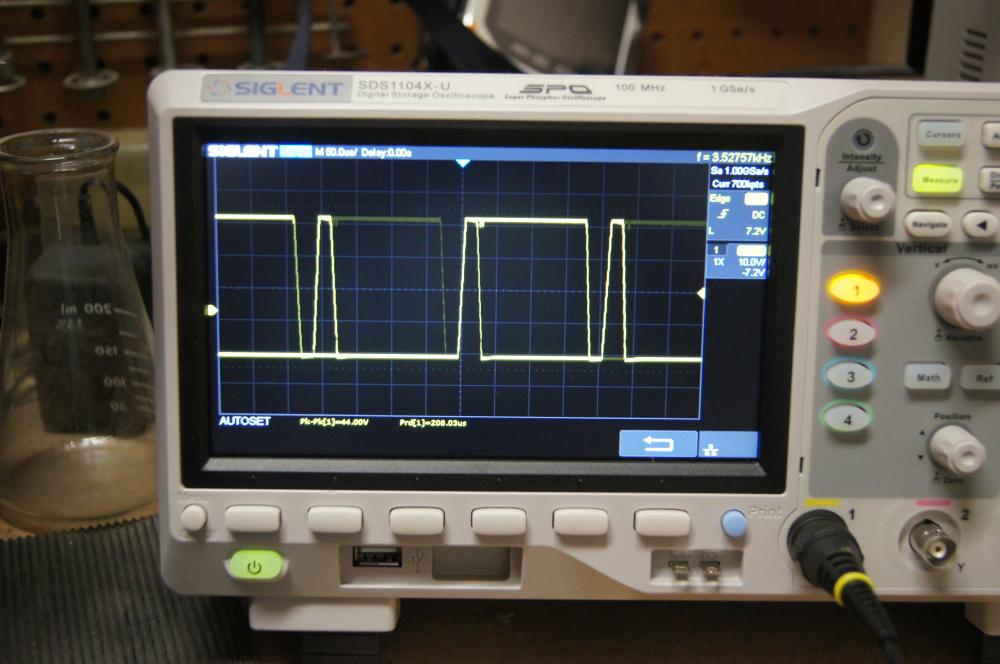

Here is what I am currently working on.  It is a compound waveform (two discrete signals on the same line) for control of Marklin digital trains.  One is the control signal for engines and the other for devices (switches, signals, etc).  You must filter one or the other out then run it through a de-multiplexer to control the target device.
